Base Track

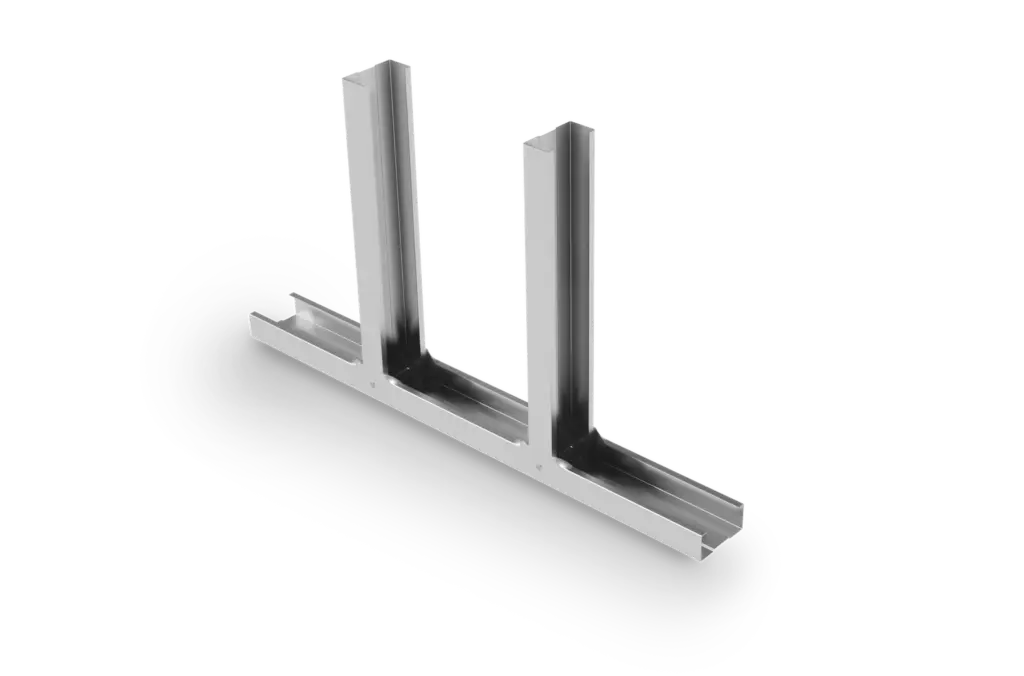

Typical Protec connection between stud and base track, fixed with two 5.5mm tek screws or rivets depending on use of SFS.
Light gauge steel framing specialists
Lightweight galvanised steel components are precision-engineered to exact tolerances with an accuracy of better than 1mm.
Typical Protec connection between stud and base track, fixed with two 5.5mm tek screws or rivets depending on use of SFS.

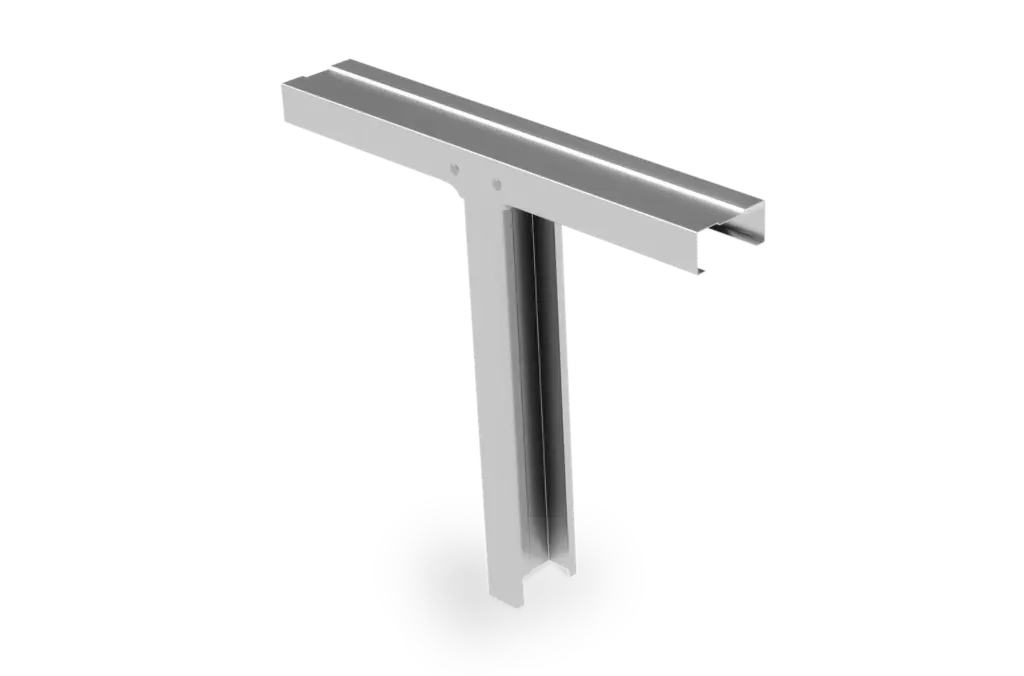

Protec deflection detail with four 5.5mm tek screws fixed to the head track, allowing the stud to move vertically.

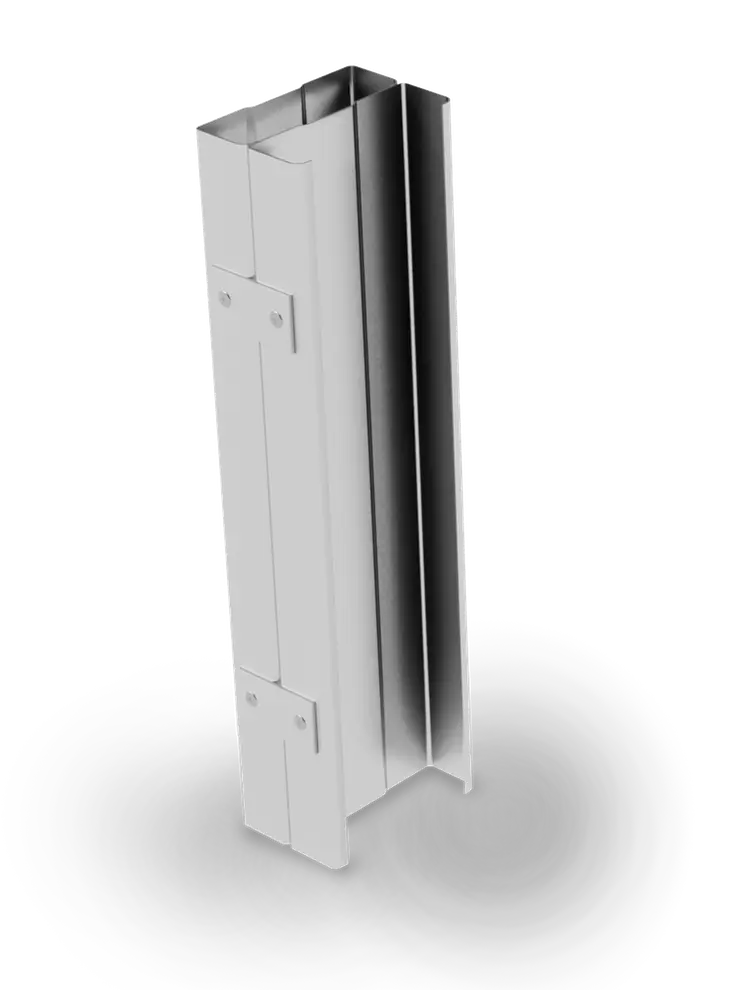

Required for larger and heavier openings, studs are fitted back to back and tied with galvanised strap to increase strength and act as one single stud.

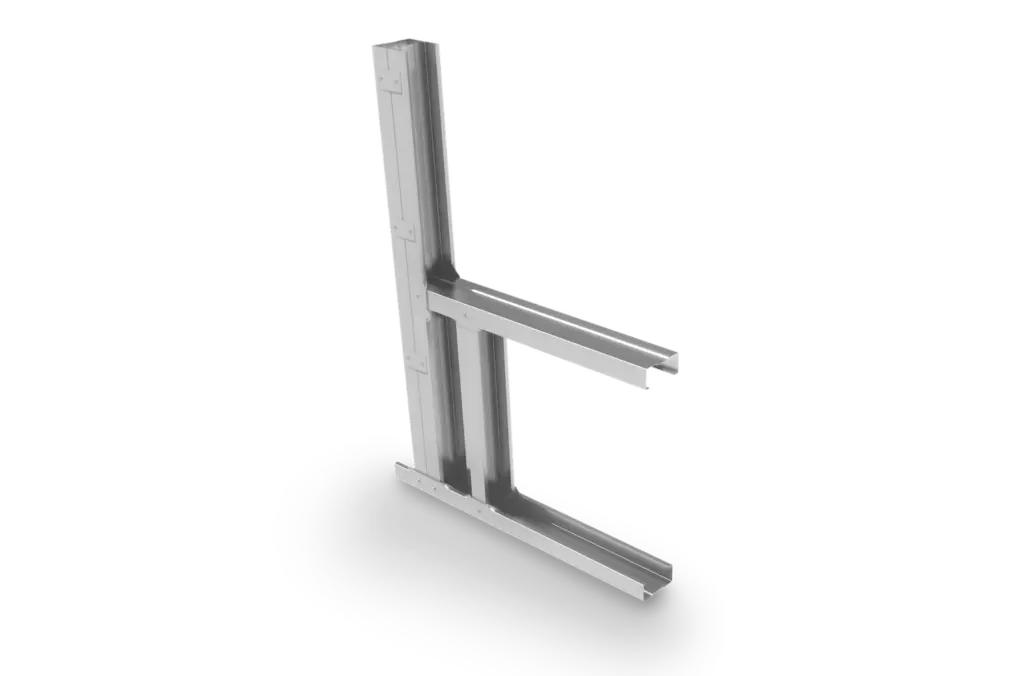

Typical sill connection detail with a double jamb stud, used for longer openings where external wind pressure may be increased.

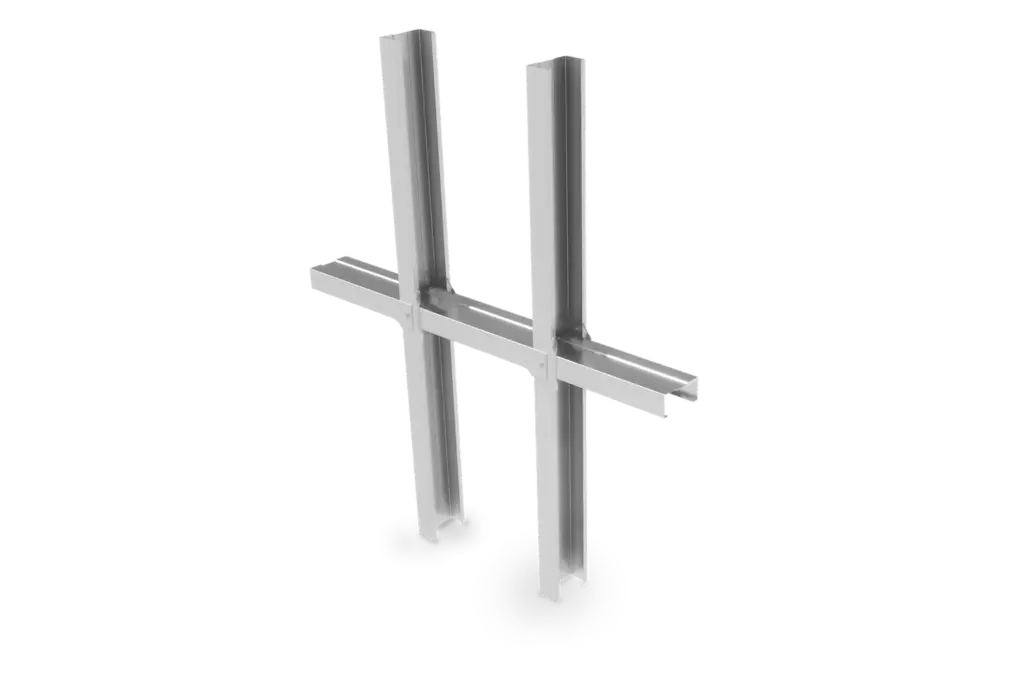

Protec noggin connection used as lateral restraint between studs, generally at a height of 2.4m to fit with plasterboard joints.
